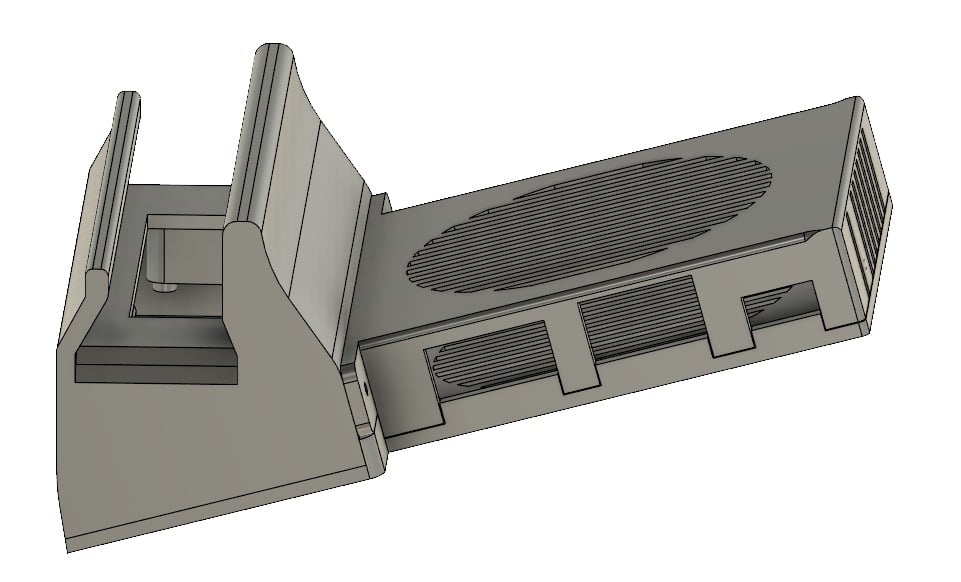

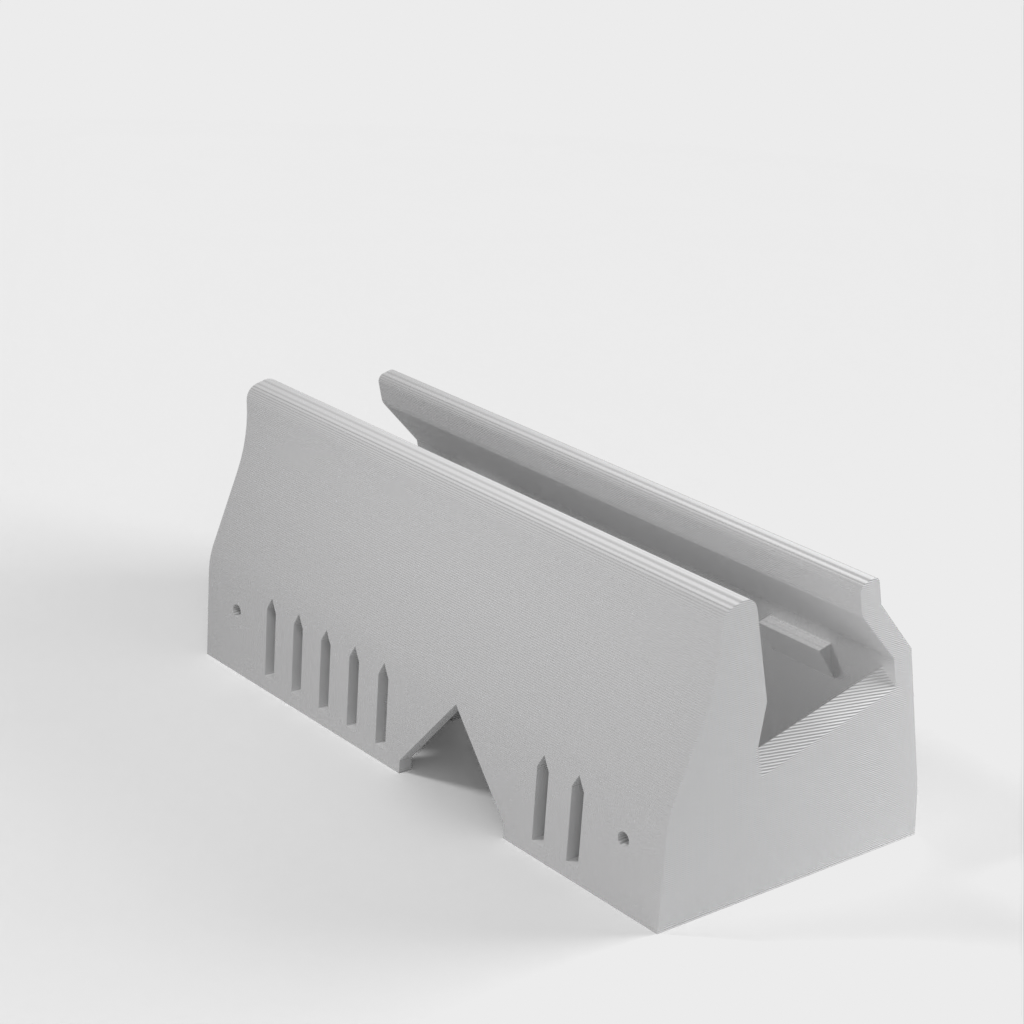

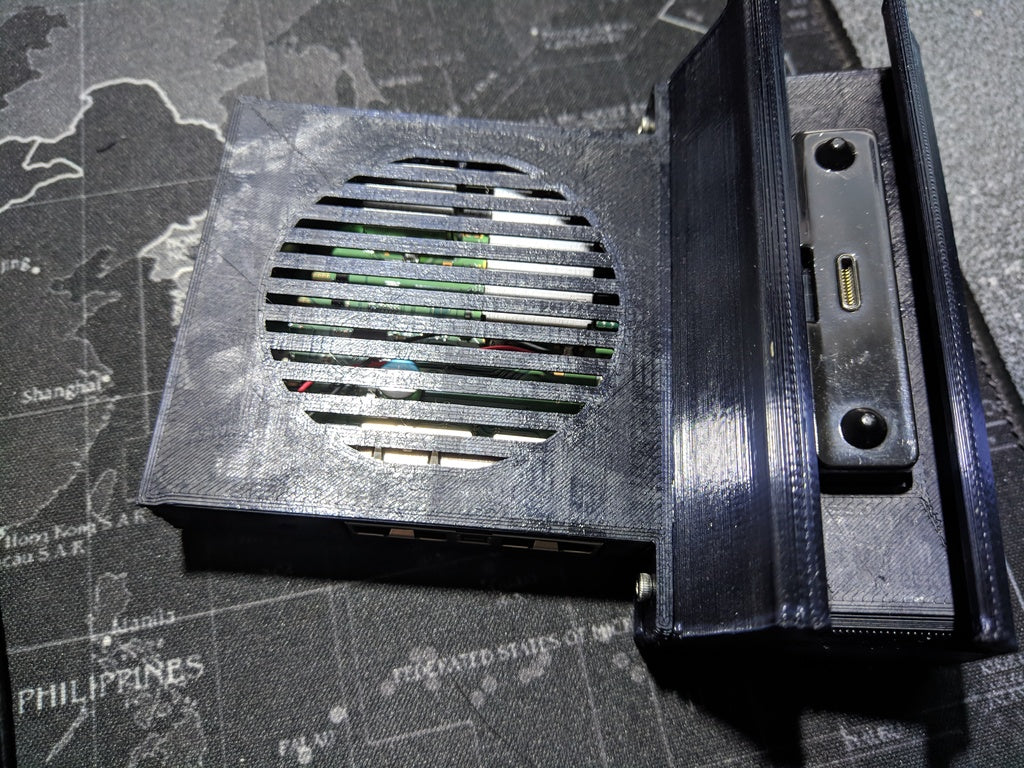

Compact but not completely compact version of the Nintendo Switch dock. Requires 4 parts including "dock", "top cover", "cabinet" and "base plate". The mirror version has USB-C and HDMI connectors on the right side of the dock. "Top cover" can be used on both versions.
Requires M2 or 2mm screws:
4x With the spring mechanism (comes with switch already)
6x to the bottom
2x on the side
Collection:
- Push "top plate" into "dock". There are 2 support brackets inside the "dock" that need the "top plate" to go on top first. The thick side of the "upper plate" faces the support and the thin side faces the notch.
- Add the original switch-dock spring mechanism parts (with flex cable) to "upper plate" and tighten it with 4 screws

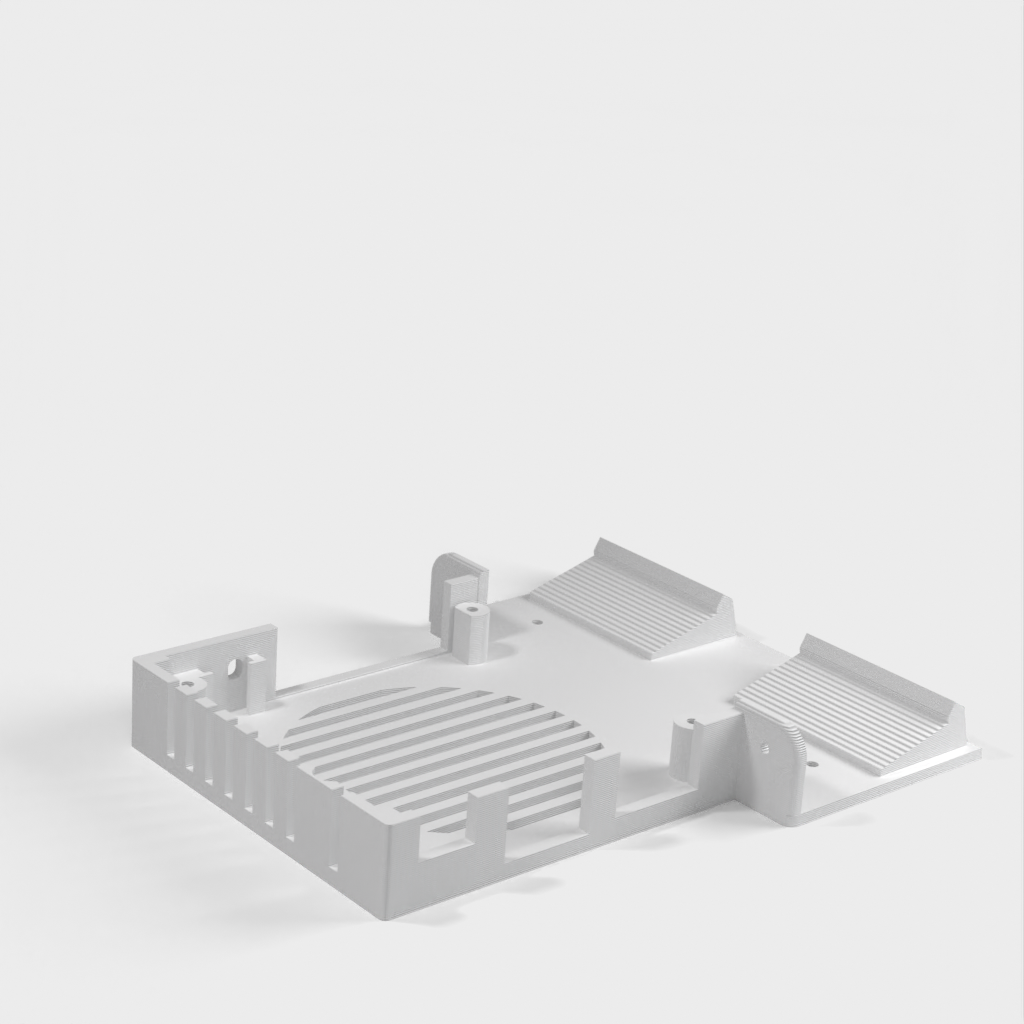

- Add "dock" with "base plate", tighten it with 2 screws below.
The product is designed by
feletoch
