Introducing the Anet A6 Double Mosfet Mount, an ideal solution for mounting two mosfets, one for the hotbed and one for the hotend, directly onto the frame of your Anet A6 printer. This design combines functionality with a sleek appearance that effectively integrates cable management.

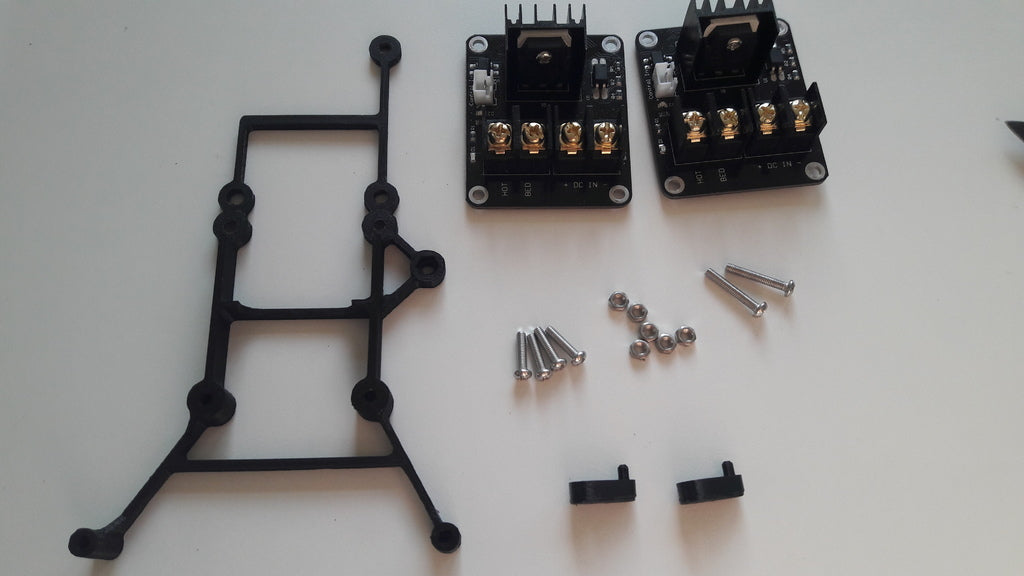

With a simple print of the main part and two small clips to secure the cover plate, you can easily install this holder. It only requires a couple of screws and nuts, which are often leftover from the printer's assembly. The design includes a cut-out under the bottom plate for cables, making organization easier.
The mosfet mount is secured with four screws, two of which connect to the mainboard, providing you with extra mounting options. It helps optimize space without unnecessary filament wastage.

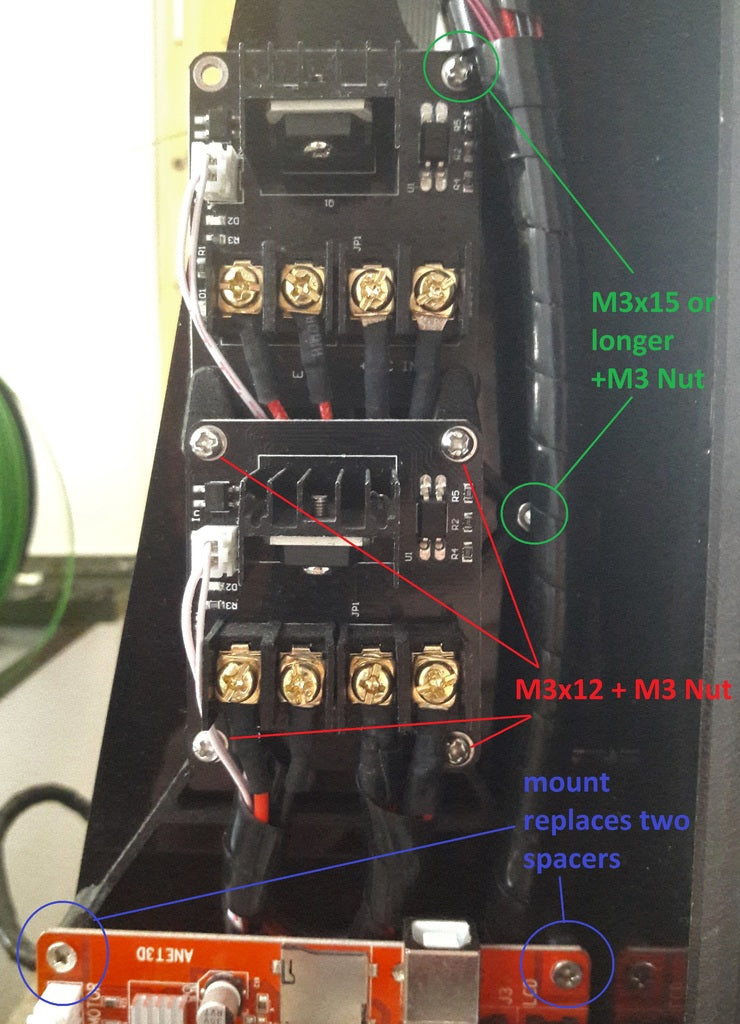

In addition to the printed parts, you will need the following screws:
4x M3x12 (marked in red, for the lower mosfet)
2x M3x15 or longer (green, for the frame)
6x M3 nuts.
Improvements such as USB port clearance and a rotated model around the upper mounting screw are also available, thanks to user dmdamen. Also, check out other Anet A6 parts in our collection.
