DIN rail bracket for 200A Car Relay with Extra Locking Device

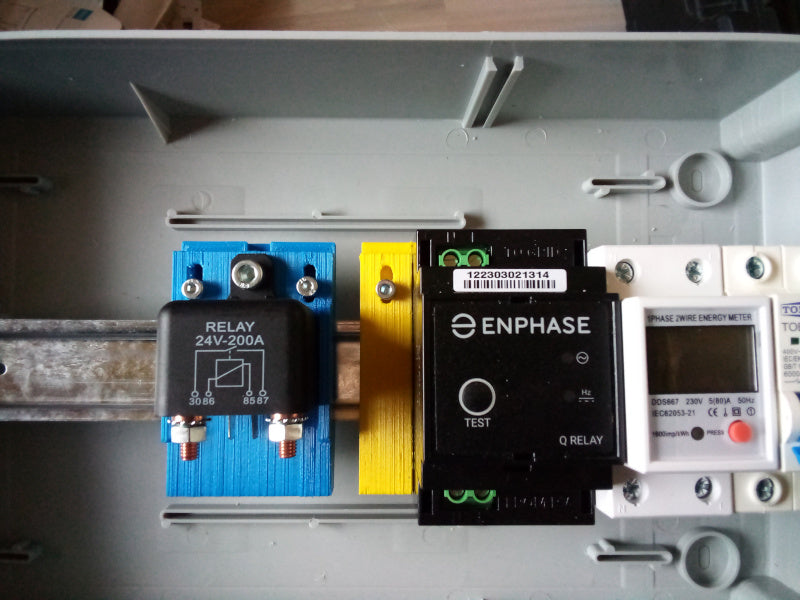

This DIN rail bracket is designed to provide a robust and secure mounting solution for a 200A car relay. It is an ideal component for those working with electrical installations, including solar power systems, where a reliable attachment of DIN rail relays is essential.

The bracket secures the car relay firmly to the DIN rail using two M4x12 screws and nuts for the clamp. The relay itself is further secured with an M6x10 screw and nut, preventing unwanted movement and ensuring long-term stability in the system.

To address the challenge of some breakers not sitting completely tight on DIN rails, the design includes a practical locking device. This part, which fills one width unit, can be used to lock components in place, thereby increasing the overall stability of your installation. A blank unit with two width units (36mm) is also available for additional flexibility, making this a versatile solution for your DIN rail mounting needs.
