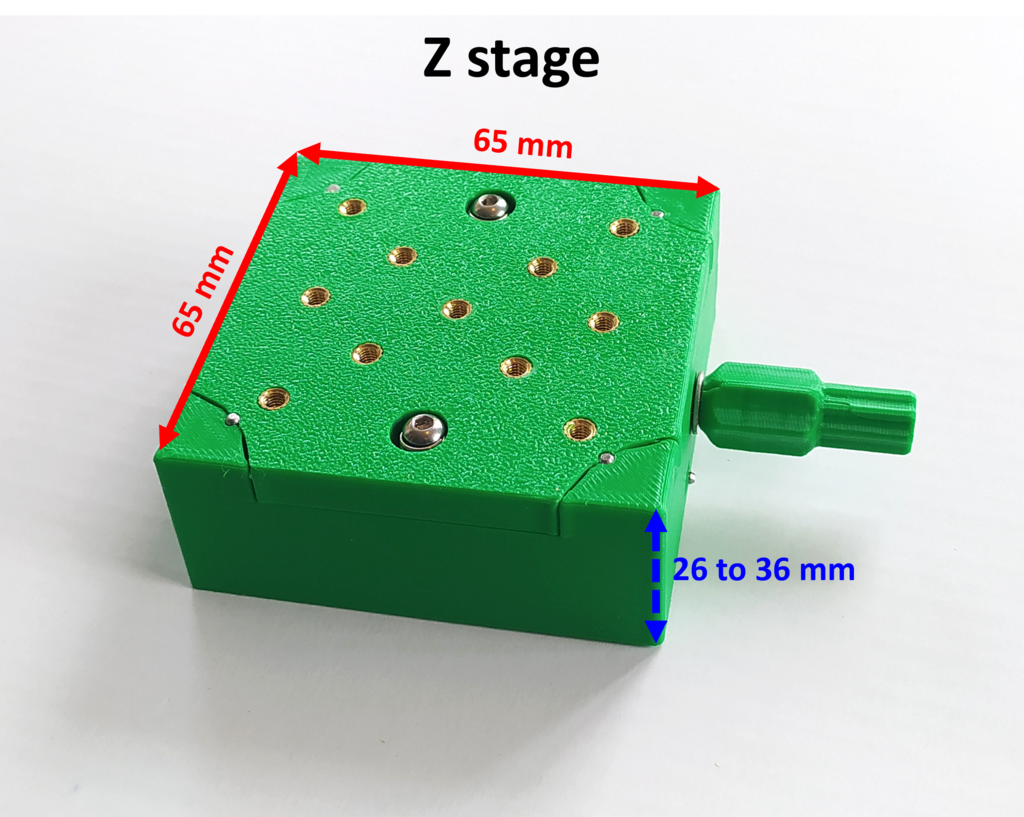

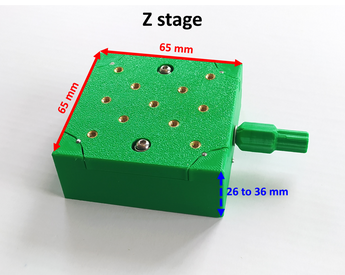

Orthogonal printed linear stage

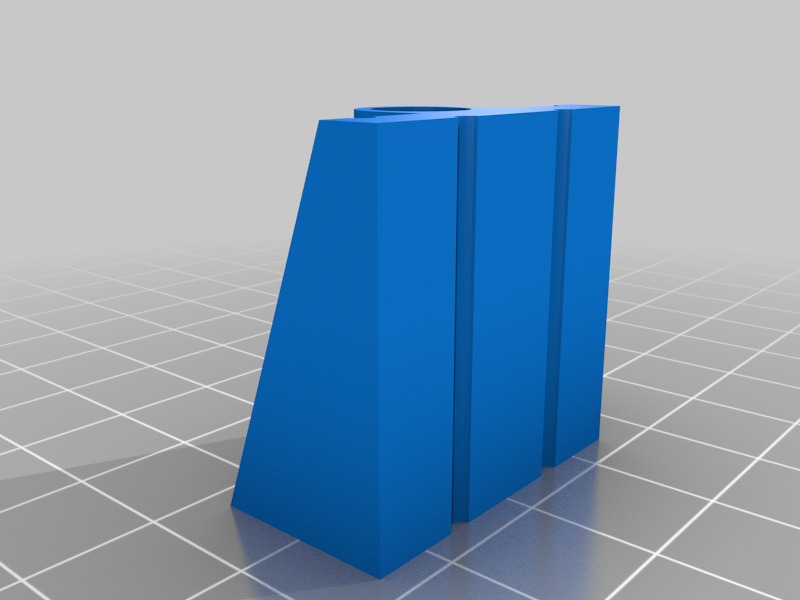

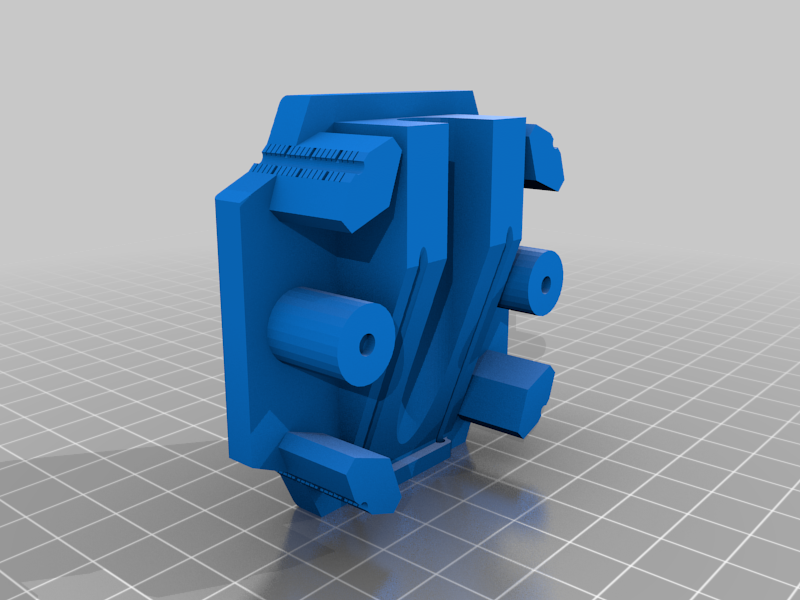

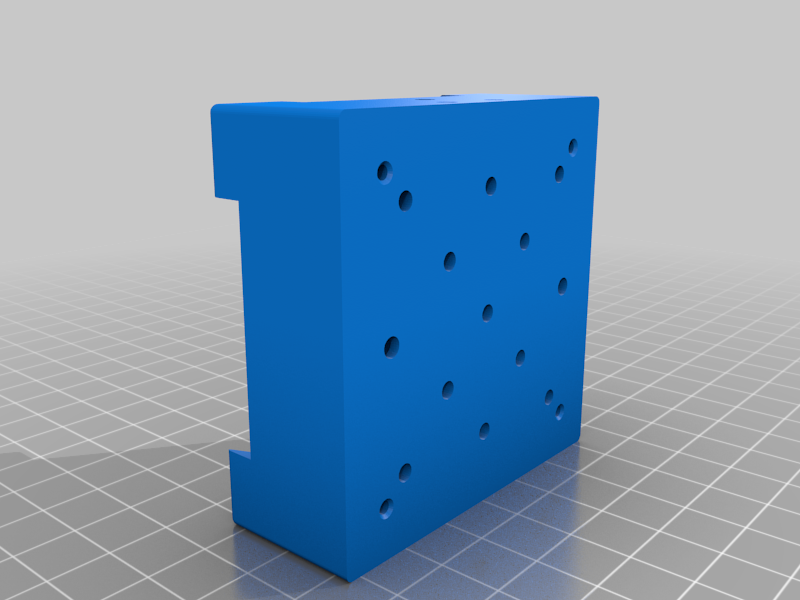

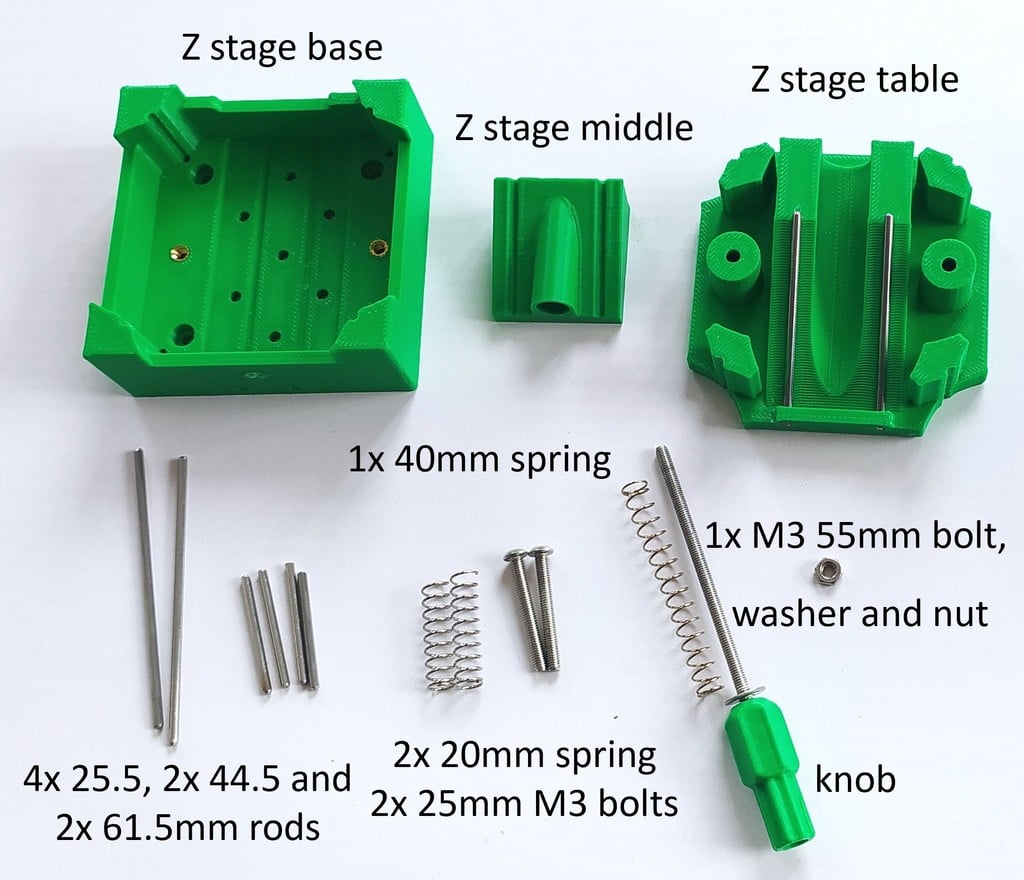

The orthogonal printed linear stage is designed to deliver high precision in positioning, with an accuracy of about 10 micrometres. This product is ideal for research projects or applications where precise movements are crucial. With its 3D-printed parts and few mechanical components, such as 2 mm metal rods, a 40 mm spring, and a 55 mm M3 bolt with nut and washer, this linear stage is both simple and effective.

The compact design makes it easy to integrate into various systems, and it can serve as a basis for building upon with other linear and rotating assemblies. Whether you need to build a prototype or a stable system for precise measurements, this linear stage provides the necessary functions to meet your needs.
